Fly Enhancers @ Stark Lab

ID Coordinates Neighboring genes Expression
(4–6, 7–8, 9–10, 11–12, 13–14, 15–16)
Strongest annotations Order
VT58723 chrX 8248525–8250736 (2211 bp) nAChRalpha3, CG43695 activityactivityactivityactivityactivityactivity
active
antenno-maxillary-labial complex, anterior endoderm anlage, posterior spiracle VDRC

Annotations

stageannotation termintensity
4-6anterior endoderm AISN2
7-8anterior endoderm anlage3
9-10mesectoderm anlage1
11-12ventral midline1
13-14antenno-maxillary-labial complex3
13-14posterior spiracle3
15-16antenno-maxillary-labial complex5
15-16lateral epidermis subset3
15-16ventral epidermis subset3
15-16head epidermis subset3
15-16dorsal epidermis subset3
15-16posterior spiracle3

Whole-slide images

Please, be patient. The images might load slowly.

Neighboring genes

gene IDgene namedistancelinks
FBgn0015519nAChRalpha3overlapping BDGP FlyBase
FBgn0263778CG4369529304bp downstream BDGP FlyBase
FBgn0030033CG138731289bp upstream BDGP FlyBase
FBgn0040928CG1534542665bp upstream BDGP FlyBase
FBgn0030034CG1055544448bp upstream BDGP FlyBase

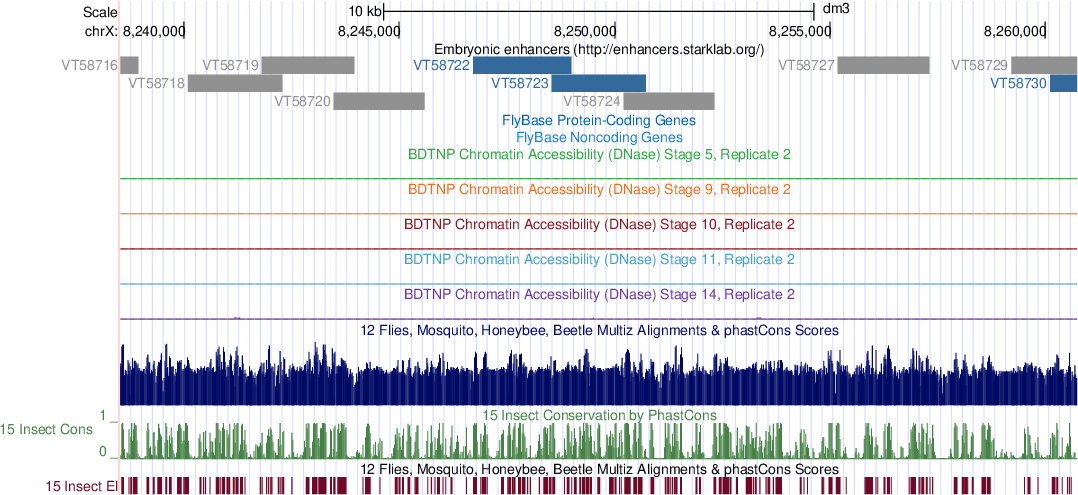

UCSC snapshot

UCSC snapshot

Sequence

gtcacctgaacgacggtgcacgaaggcaagacacaatgccaaagtaaataaaaatccaaactaaattgatttttttttttagaatacacttaaagaacttatgcaccttgaaacacaaattatgtgttaaaagaatttaataattaaatatatacatacatattcgattgaatagtggatcgtgtttgtataaaactagctttttaatatctgtacgtttattatttcaacactaagcgtatattccttgcgcttgatttttgttattttttttctggggaattttcatcgaaaacacagcgtattttggtgcaacgtgccacgcccagatgataccacaagcggctattgttgttgtcatactttccttttaatttatcagcatatgaaaatctgcaactgcaactgaaagcgacgttgcagcagctggaaagcgacaaccccctcccacccccctcgaattgcagattttccatgcaaatttaggtttgtttggctcggtcagtagtggcatacagcattttccaaggatggccaccacaaaacttggcaatttgatctggataaatggcgctcagtcaaagggaagagtttcgctttccttccctttctatccattcttttggttttttttttttttttgtcttaaaccatttttcattttcggtgcgcgctgacagtttccctggagaaaacgaaagtgaaagtgaaagtaggtggggttgcttcaaaattcaacaagagaaatgcgtgagcggcaaatgagtcgcacctgggaaatgggggaaagcggtgaaagtcagtgtgaataaatgcatgaaatgaatgagtaaatagctcgaatgactaactgcggcattttccacccaagacattttccacccaccattgttcggggcatttgctcgatttactaaattactaggaccaggatgccaggatggtgtcgacaaccagtcggcaagatagagataaatccagatgtacatggagtaattggggctctggacgagttggttatcctgcgaaaaagggtccaagtcggaaaatggccaaataatttatggctaaatgtaatagcacttttatagttgtgtggccaattgattgaaactttagtgaattggtattttgtctatgcacacttggagaaataaagctgtgctttcacaaaaggatatgcaataattggaattagaatgaattgaataatattttaaggcatttggaatagtcagaaaaccaatgtttgctgcccaattaaatgggacgcgaattaaatacgaataaatatgaaaactttaccgaaatctcttccaagtcaaatcgtaatttaaatgcctgcaacatttctggccccataaaatgagcgtttgaatcaaccaaccgtgtgctgcccaacttttcccccacaacaaaacccccatcgaatatcatcttaataaatcagagattcttccacactaaccagtataatctggcaattcagctgatcccagaataaaactaatatccctggctttttccaacacaacatttggctgggcgaaaaaaccaccccgccccctccaagcaaatggtgcgttcaaaaacaaaaaaaaaaaaaaggaatgcgaatagggaaaggaaaaaggtgtgaaaattctgggaacacacagcaatcggagagaaggacgtgcgtgcaagtgagatagtggatggaatgtcctttggcattcgaaaatggcattatcaaaatttacatacacgcatatcctgattatcccttaagcatgaattattgaaagcgtaaataccaaaacacggccgacagtcgacagccgagagaaggaatataaacaacaacaacaacaacaacaacagcaacaaaggcagtaacaacaacaacaatgagagattcgggacaacaatgcgacagaagttcctcgtgagtggctttttagggatgctgataatgataatgataatgattatgatgctgatgatgacgatgtgtagagcaagttacatccaaggatggggcaaactcagccagacgacggcttaattttcacatgacaaacaaaaaaagacaagctgagtggagacattttgaatggcaactcaagctaaataagacaacaaatttcacacacacacaaaaaaaaaacaataaaaatatgaaaaaaaaagctgaaacagaaacaggttgagtgcggattctaaagtgggc

PCR verification status

Line verified as correct.

No slide loaded.
