| ID | Coordinates* | Neighboring genes | Expression (4–6, 7–8, 9–10, 11–12, 13–14, 15–16) |
Strongest annotations | Order |
|---|---|---|---|---|---|
| VT37223 | chr3R 2033360–2034891 (1531 bp) | Osi24, Osi2 |
      not active |
VDRC |
Annotations
| stage | annotation term | intensity |
|---|---|---|
| 4-6 | not active | 0 |
| 7-8 | not active | 0 |
| 9-10 | not active | 0 |
| 11-12 | not active | 0 |
| 13-14 | not active | 0 |
| 15-16 | not active | 0 |
Whole-slide images
Neighboring genes
| gene ID | gene name | distance | links |
|---|---|---|---|
| FBgn0037409 | Osi24 | overlapping | BDGP FlyBase |
| FBgn0037410 | Osi2 | 1735bp upstream | BDGP FlyBase |
| FBgn0037411 | Osi3 | 8194bp upstream | BDGP FlyBase |
| FBgn0037412 | Osi4 | 10680bp upstream | BDGP FlyBase |
| FBgn0037408 | NPFR | 12236bp downstream | BDGP FlyBase |

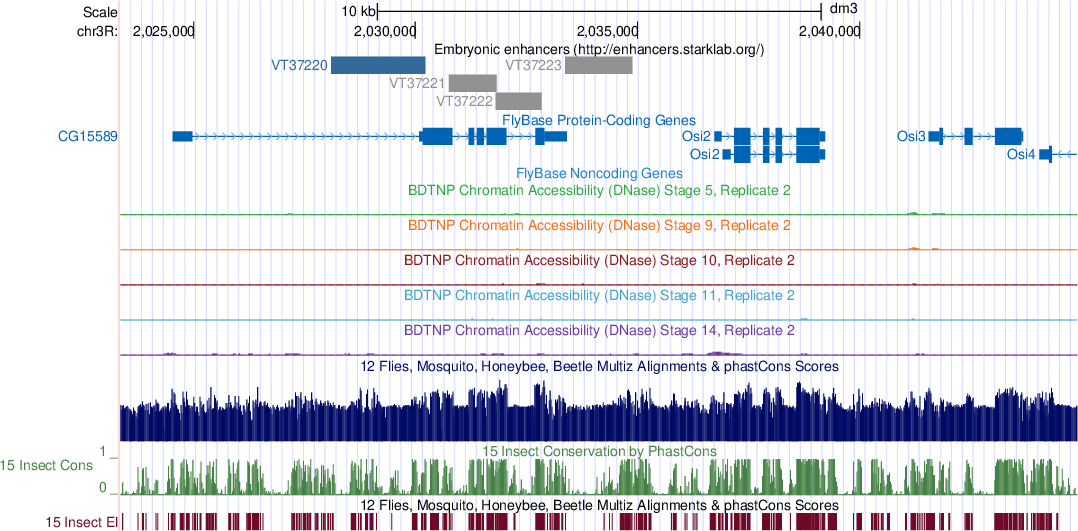

UCSC snapshot
Sequence
caaaatcatgttgtaccaccagaaataaaccaaacttattgaaatctctttgcgcttgattgggcgaagaaacaagggcatggcttcttaagcgaattcctgtttaaattggttgcatggagaaagagcttgcctgacgacaccagctcgaaaacacctttcctattttagtgcaaacatttgcattatacagaaatatctaaaggacttggggcagcaagaaacttaattacaagcaaacatgtgtttgagtgtctggtaagtatatgcatttatatgtaagttacgtgcttttaagtggttcattgctttcagctttaatgaagtgatcctagtgacaataagcaatcgaaactagttagtcaatttgtatttttcgcaagatatgttgtcaaacgtttttgataaaatatctatattttacacaagtatagaaccttgaatctgcactaacaaaagactaagaaatcatataaaaaagtcggcggaatgactttggaaaaatgtgtgctatagtattttacttaaaacatgcagtttgttaataatttgagtatatgatacctgaatactaatagtgctggaatgtctcgtttaattaaaagtggacaatgaagtaatacatatttaataaaagataccactactactgactactgcgtttcgcttcgacttgtagtattgtttcgtaaatatattttcggaaatttgagctaggtttatttatttagggcgcaaatctgtgcagtggaagaggaagtgctgcaaatattgtgtttagctcttctgttaccggattttctcctttttttttcttttctagttatttacgtttacatatgtatgcggaatgttctggtcagatgctttaaagggctgcccaagtagatgattcaattacgcggcttgggcaacatgtccggcaaaacaaaagcgtctccgaccgcagccttgcacccggccacgcctccgcacacaagtgccctcgaactgacggaaacaatttccgccggcgggcttctgtttgcggcctcgttggcagatcgtgcctccgctgaccgaggaaaatcgggaaatcgtgcgagtgtggcagcgggaaaacccgcagcagtgccgcctgttttgatttttgtggcagccagatggggaattgcccagttgccccacgattggcccacagttgccgccgcaggaaattgcagacaatgcaaaaactcactggatgcaggttcctctggttcgcatttcgccctgactttaaacgtgggcgttccaaaaaccagtttgcagtaaaagtaataatcgtatgtgaggcaagaggccaagagttgcataatccctgcgactgtgacgtacgttttcccggaatgagtcacttgaacagtttgttggctctttaaatcaaactcgaattaaagccaaggcctcgacgtgcgccacaataattttgggattttctcaaggcacacgaacgctcgactcgcccagccggacgcgaagaagcacaggtcgttgtctctcacccacggagt
PCR verification status
Line verified as correct.
