| ID | Coordinates* | Neighboring genes | Expression (4–6, 7–8, 9–10, 11–12, 13–14, 15–16) |
Strongest annotations | Order |
|---|---|---|---|---|---|
| VT42167 | chr3R 11465500–11467714 (2214 bp) | CG43336, CG43335 |
      active |
posterior endoderm anlage, telson, posterior endoderm AISN | VDRC |
Annotations
| stage | annotation term | intensity |
|---|---|---|
| 4-6 | posterior endoderm AISN | 3 |
| 7-8 | posterior endoderm anlage | 4 |
| 7-8 | trunk mesoderm anlage broad | 2 |
| 9-10 | head subset | 3 |
| 9-10 | lateral epidermis anlage subset | 3 |
| 9-10 | posterior endoderm anlage | 4 |
| 9-10 | dorsal ectoderm anlage | 3 |
| 11-12 | head subset | 2 |
| 11-12 | brain primordium subset | 2 |
| 11-12 | ventral epidermis primordium subset | 2 |
| 11-12 | telson | 4 |
| 13-14 | telson subset | 3 |
| 13-14 | dorsal epidermis subset | 2 |
| 15-16 | not active | 0 |
Whole-slide images
Neighboring genes
| gene ID | gene name | distance | links |
|---|---|---|---|
| FBgn0263041 | CG43336 | 1598bp downstream | BDGP FlyBase |
| FBgn0263040 | CG43335 | 3290bp downstream | BDGP FlyBase |
| FBgn0053207 | pxb | 26405bp upstream | BDGP FlyBase |
| FBgn0264431 | CR43849 | 28200bp upstream | BDGP FlyBase |
| FBgn0051446 | CG31446 | 53308bp upstream | BDGP FlyBase |

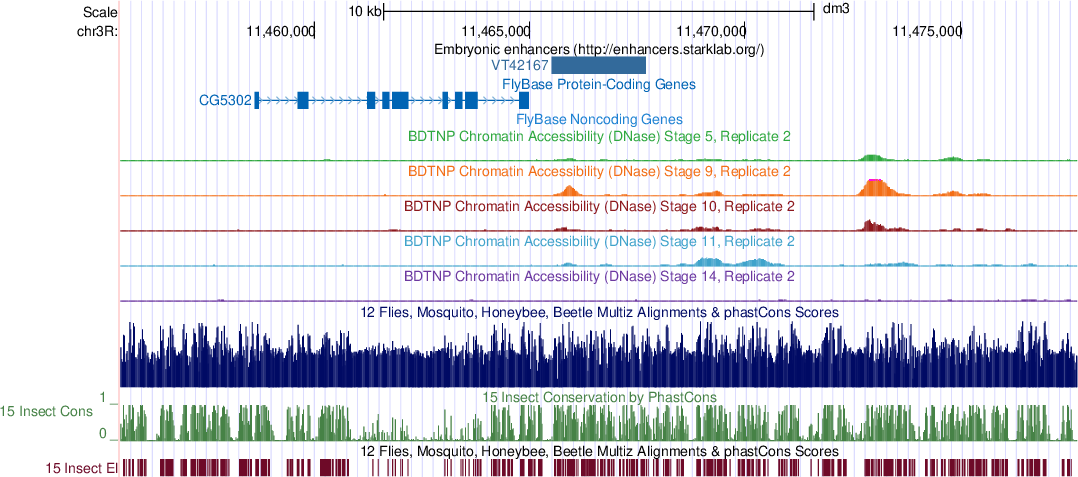

UCSC snapshot
Sequence
tcttctggcatatccgctttagggcgaataattcaggacctttgaaatgggcatcttgcaaccgataattgccaatgaggcaactgtatcaggtgctattcagcatgatttgtgtttgccaaaataagagtaggaattaagtcatcgaaagtgaagttaatggctggccgcaagagtcaggcaggatacacctactggcgattcgacggaggaggatcctggacaacagctgccacacaggcacaccgagcacctcgatctcgatctaatttaggcgtattagttgccccgcaacaaagggcagggtgaattcgaataaaggcaagaacaatacttagacggaccttttgtgctccgacttgtttcgtttcgaggatccttgagcactgcgataaggcgctgctaatggcttcattaggctgtgcaggttcaagtgaaggttcatcttgaggttctcatctgtttgccacatgccgggaggcaagaacccagcgatctgtggatctctatgaggactttgaagtaaccgccgctgaagatccttcgtcttgcgtctgtttagatgcaatgcaatgattacaattcgtttcgtgaaattgctcaagaggcagcagctaatattttggcatcgcttgaagagcatatgagaaatacgcggcgaaggggaagagatttccttttagaaaaatatccccataaaaaacgtctgatgatacaaatcaaattgccaactcataaagtgccatggatagaatgaaacatttaatgtcggaaagtttttattacagttttcgttttcgttttcctttgctccttcagctgggtgaaatgcccaggaaattcacaccttttggccacaacaagggccacggcccgatctcgccattttatagcccccacattcgacttttatgggcagttttcttttgaaaagaaattaaaattatataaccgcatataccaaatatataaatatacattatccaataaagatgtgacccagcggagaaatcatttagggaaaaatgcacaaattgtgtttttgatttgagtgaaacgcattcctcgacaagtgtcattaaaaatgttctcgactacaccgcactatatgtacaaagatacagatacttagaaccgaatttgtatgcaaaagcagtgtttggggtctcgtaaagcatcgtctgaagtgagtgcacataaaatttgtaatcacttggagtacttacatgcataagaaatgtttcttttgtttgaagggtttccccaacccaatttccccatccatttttttggtcatgttacttgattagtcagaggaatcgttaaaattgctcatgaacttgaatcgtaaaatcgtatatcggagcagatatgtgcatctatattatttcgtttcatagagttatgattgctgtttgggttataaaaatgttaattgaaacttgaggcgaagtaaatgcacttgtaaattaataggcgagatatatatgtatatcgcgttttcctaagaaagcagatgtatcaattcactatttttatgttataaatgtaataaatcttattcacgaatcaattcgcatcgcaatcaacacttgcgatccgaaactctttcttccaatccataaaacaaacatccagcctgacatcacattgttaacaaatgttttcttacaagttcacaccaaatgttcacacttcagaacagaaggcagtcgattctgattcaaagcaacaaaaagggaaaaggtgttagaaatcaaagaacttggcgccgccttaaagatgcaacagccaacgagccatggaagtggcatatgttggccatatacataattttatttaaggctccttttatgggctttaattgcatttcgatggccaataaaacgttcagattcagccaaattaacgacgggaagtgccaacaagcctacaaagctggaacttaattagcgtcttctcaaaagtcgggccctttgaagacctgaagtccaggtggcgccacaaaaaagtactcattattattgtggcataaaaccacggttcagattacaaattcaaccatttttgcattgcaaatcccagtcgattaatttgtaatttcaatctctgctgcatttgtgccatgtgtaatgcgtaaaatgcaaaaattcagtttagtggaaaattataaaaattatattgccacattttgaattgcactcggcctatgcct
PCR verification status
Line verified as correct.
