| ID | Coordinates* | Neighboring genes | Expression (4–6, 7–8, 9–10, 11–12, 13–14, 15–16) |
Strongest annotations | Order |
|---|---|---|---|---|---|
| VT42834 | chr3R 12721230–12723378 (2148 bp) | iab-8, CR43617 |
      active |
head subset, visceral muscle primordium subset, visceral muscle subset | VDRC |
Annotations
| stage | annotation term | intensity |
|---|---|---|
| 4-6 | not active | 0 |
| 7-8 | not active | 0 |
| 9-10 | not active | 0 |
| 11-12 | head subset | 3 |
| 11-12 | visceral muscle primordium subset | 3 |
| 13-14 | head subset | 3 |
| 13-14 | visceral muscle subset | 3 |
| 13-14 | clypeolabrum | 3 |
| 15-16 | sensory system head | 3 |
Whole-slide images
Neighboring genes
| gene ID | gene name | distance | links |
|---|---|---|---|
| FBgn0264857 | iab-8 | overlapping | BDGP FlyBase |
| FBgn0263595 | CR43617 | overlapping | BDGP FlyBase |
| FBgn0000015 | Abd-B | 31702bp upstream | BDGP FlyBase iFly |
| FBgn0020546 | iab-4 | 39012bp downstream | BDGP FlyBase iFly |
| FBgn0262290 | mir-iab-8 | 39167bp downstream | BDGP FlyBase |

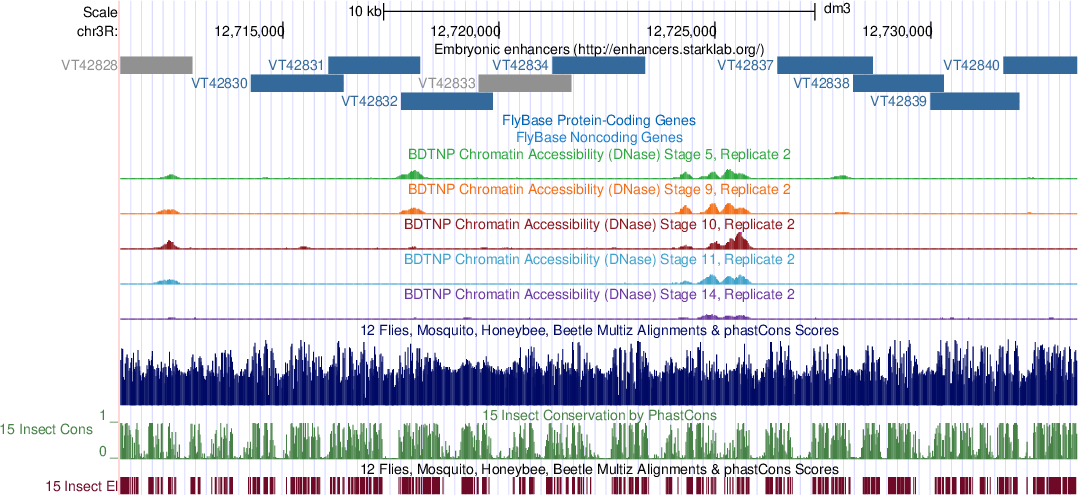

UCSC snapshot
Sequence
tcacgcaggcacggatacagatacacacgcacactggcagcggcaagtatttgaagtctcctagcctcgacttttttgtttttttttcctcgtcgtttaaatatttcattttgtcaaaaaagaaccgaccaaggaatgcaccgaaaaaaaaccaaaaaacgggaagaaatggggaaacgaaagcagctgccaaagcttttaggtaaattaaataattttttctcttctgctgtcattttagacggaatcggaatggaaaactgctggggcagcacgaatagtttagtttattttagccatagctcaagaacgacagcaggagcaatccatcaaaaaaaaaaactacagaagcatttttgcttaatttatgacttaataaacccagtatctttcgccgcgggatgtccatgttaatcagatattctcggcgcagcagctccaagacaggtcgattgaaatatggccgcagcggaaatgctaaatgggattgggcctgggtcttgtatggaaatgcatccacatacccattcccattcctttttccctccgccgattaccaattcacaattaccattcccgacattgcatgctcaccggataatgtcaatcagcgaacattcttcatttttgtttactcactcaccttggggcgtactccatgcttgtggtctcttgtttgttttcaaatttcctgcctgctggccattttatttattcaaggagcgagactattttatacccgatcgcagactacttcagggagttaaaagccggtaccgcgcacttcgaatggagattggctttcaaataaacattatttctgctcgctggaacttggcagctgcatcttggcccggccaacgggcaatcgattgggcaggccgcgtttgattcggcctgaacaatcaggggccataaatcataattggcaagcaatttgaccgggccattggaaattggctccataactactaggcacaaatgcattggccatagagtgctcttaattgagataagaaatttattccggcctggttccgactccaatacgaaattaattggttccgattgcaactgagcgcagtcagaatatttataattattaatttaaacataaaatttactgataggcttgctcattctctactctatgtaaagagggtgatttgttgaatctaatagtcaaataaggtccatggcatgtaaaccagcagagctgcttaaatatatatatacttgcttataaacatgcaaaacgtataacacattttctgatacatagtcaactgattaagtacacctttgataataacttatgaaatccacattattttaatgcagtatctctctccgtttccctttaggccataaatcctcctcgatgtcttcattttcgtgtacatccattgggcggccattacaaccacaattgacacagtgatttacggcaataaaaattattcacctgcacaaccagccaacacacacatgcgaatcggaggactacacacctggcgaggaggggaagtggaggatttgggaccgcaggcgacgctttgtcataaaaaataaaacgaaattgtcgtcatttttatgactccctaccgtgggcccggttaagattgagattccagcttttcgggcagtgggaagtcgtattttaggcagctccttaaaaagtcacttgaacggaaaacgcaatgtaagcccatagccattggtgactaaggaaatacagaagccggtgaacggtaaagccccagaagctttgtggacttttcttttaatgagctgtcagaattatcataaagcaattaaacgcatttcacactcataaccgtaggcaagtattcaatccacacgcactgccacgccccccaaaacgattccaccgccccttcggcgagccgtgtctttgccactgacactaattggttgctttatggcccagttaaatcgtaaaactcaaattttatgctttgtcactgaaacgattatgacgtccgttgctcgtcctcgtcgtcgtcctcccaagatccctcgattctgccgtcaatccgggaatcccgtcaagtggcttcatctccggcgttcgttgccataatgccccttgatttatgtctctgcccgagttatttgcgccaattta
PCR verification status
Line verified as correct.
